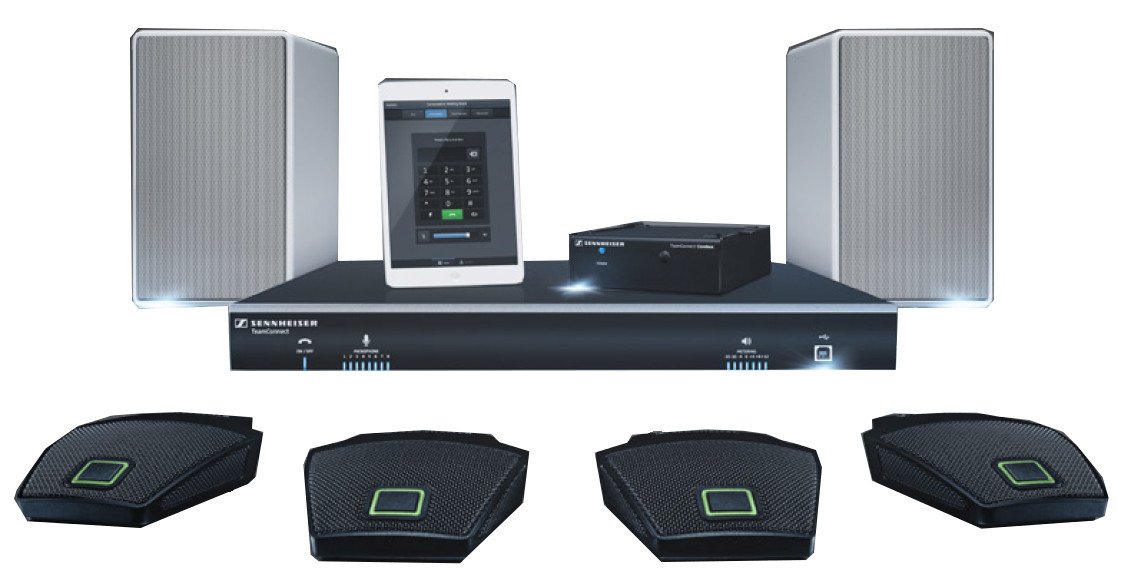

SENNHEISER Team Connect Audio Conferencing System Package, Large Flex

Sennheiser’s TeamConnect is used to connect your audio conference for up to 16 external participants, and offers a complete solution for small to mid-size meeting rooms with web and telephone conference infrastructure. All components of the TeamConnect system - from microphones to loudspeakers - provide optimal speech to enhance meeting efficiency and business communications across a range of platforms and personal business devices.  The Standard Fix model of TeamConnect provides all the tools needed to capture, process, and reproduce the corresponding audio – including high connectivity (landline, 3.5mm, web conference), end-to-end integration of all required audio components, and the ability to route just two cables from desk to rack. This standard bundle gathers audio with 8 on-table boundary microphones (MEB 114-S TC) – an ideal choice for conference rooms with permanent seating arrangements and one microphone per speaker. The two microphone hubs (SL MIC HUB 1) can be cascaded, and simplify the amount of cabling that has to be integrated by bundling the audio signals into a single Cat 5 cable. It comes with a mute and hook switch, and distributes logic signals to the TeamConnect Combox. The SL TeamConnect CB1 (Combox) provides meeting connectivity for mobile devices, headsets and laptops. For web conferencing applications, the Combox processes all audio signals from the Mac and PC via USB and a 3.5mm jack plug is provided. The Central Unit CU 1, an iOS app-controlled automatic mixer, processes audio inputs and outputs for web and teleconferencing, and offers multiple inputs while delivering high-quality sound with a focus on speech intelligibility. Paired with the Combox CB 1 it provides plug-and-play connectivity. The 1RU unit provides network/landline connections, (8) microphone inputs, (2) auxiliary audio inputs and (8) audio output channels, with an Acoustic Echo Canceller for each input channel. Sennheiser’s SL Loudspeaker 52 A(s) are active loudspeakers with built-in power supplies that complement the TeamConnect system with a clear, concise sound and comfortable listening. The speaker has a low-key design that fits any meeting room, is optimized for speech, features an auto sleep mode, and includes a flexible wall mount. Last but not least, Sennheiser’s website has an Efficiency Calculator that allows you to evaluate how TeamConnect raises efficiency for your business - based on factors like frequency of meetings, number of participants, and average setup time per meeting. There are also two download information packages available – one for Integrators and Intermediaries, and one for Planners and Consultants.

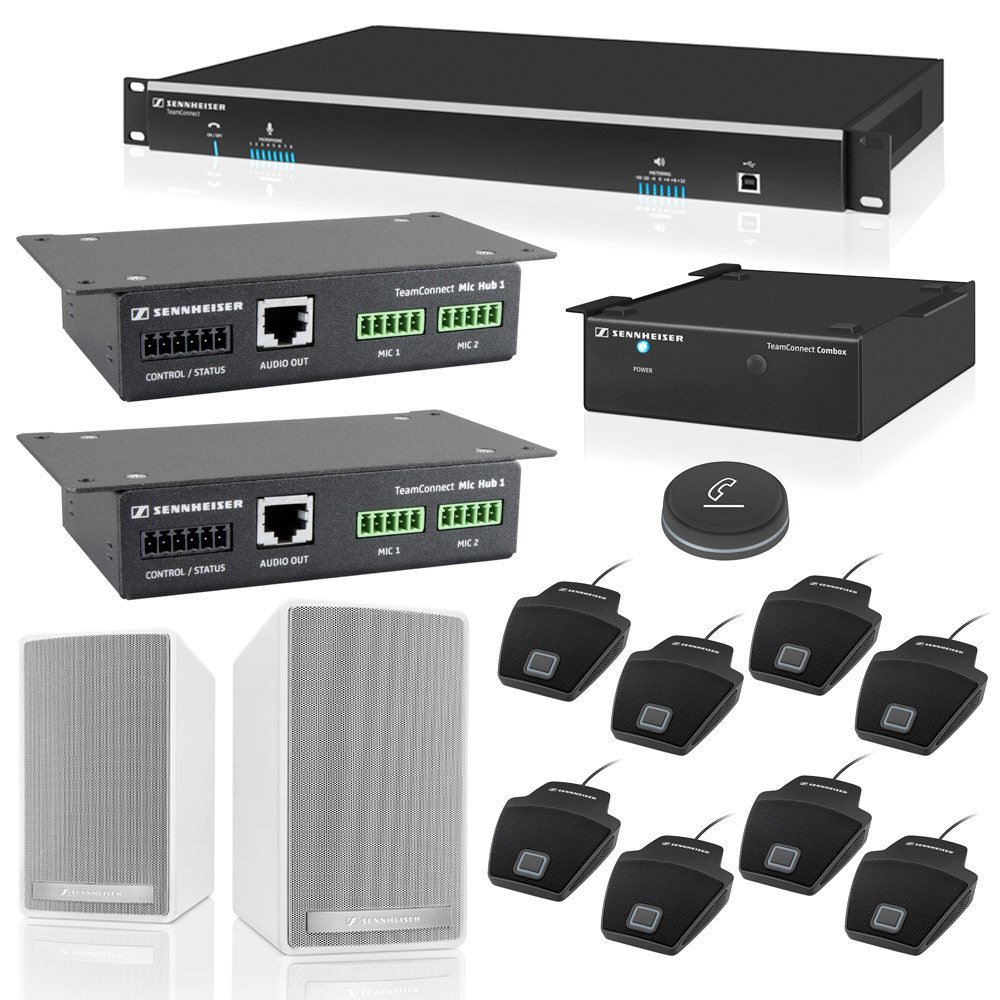

Sennheiser TeamConnect Standard Fix Includes:

• (1) SL TeamConnect CU1 (cables included)
• (1) SL TeamConnect CB1 (cables included)
• (2) SL MIC HUB1 (cables included)
• (2) SL Loudspeaker 52 A (mounting hardware included)
• (8) MEB 114-S TC (cables included)
• (1) MAS 2-TC (cable included)

Sennheiser TeamConnect Standard Fix Features:

• Complete audio solution for standard meeting rooms with up to (16) participants
• Excellent clarity and speech intelligibility for increased meeting roomefficiency
• Complete audio processing, including room optimization and echocancellation
• Connectivity via landline and PC/VoIP for web and teleconferencing
• Convenient control via iOS App or web server application (accessible viaany network device)
• Compatible with nearly any personal mobile device
• Renowned Sennheiser audio quality

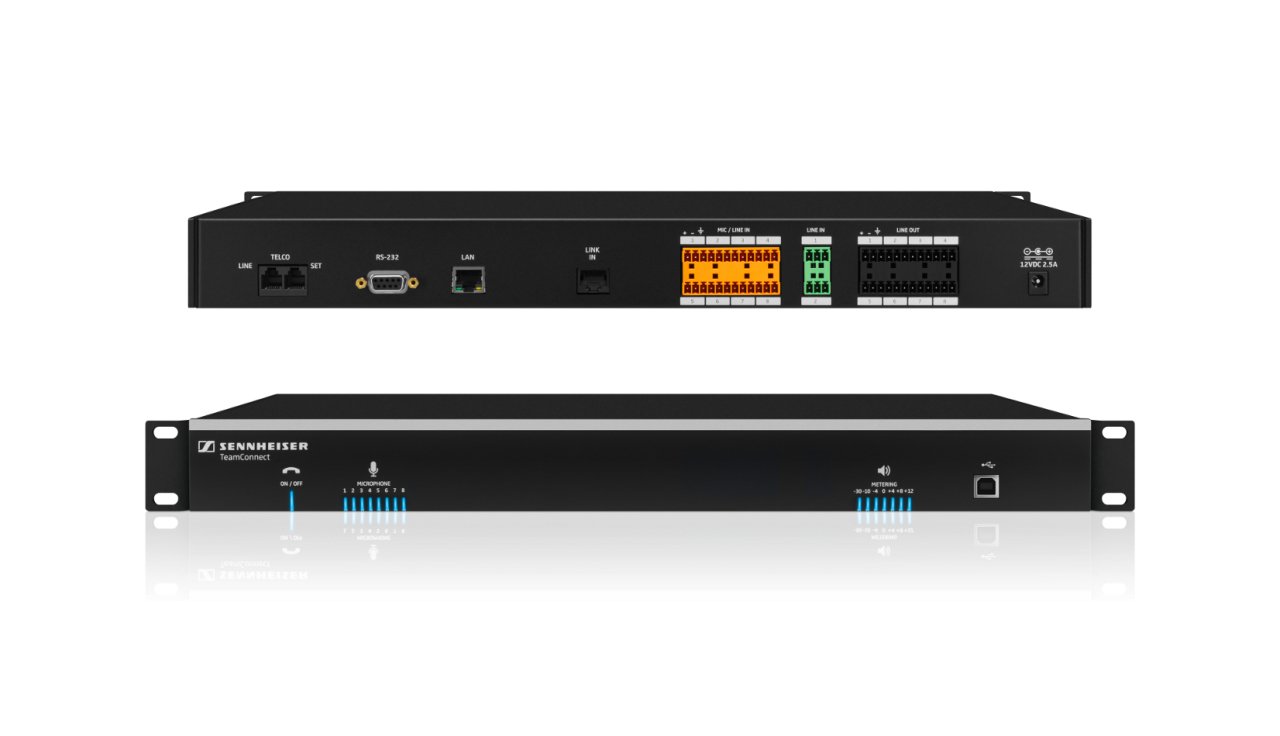

Sennheiser SL Team Connect CU1 Specifications:

• Housing:
  • Dimensions: (W x H x D): 17" x 7.5" x 2" (43.2 cm x 19.1 cm x 5.1 cm)
  • Weight: 4.5 lbs. (2.25 kg)
• Audio Performance:
  • Conditions: Unless otherwise specified, all measurements are performed with a 20Hz to 22kHz BW limit (no weighting)
  • Frequency Response: 20Hz - 22kHz BW, max gain
  • Noise (EIN): -124 dBu, 22kHz BW, max gain
    Rs=150Ohm
  • THD+N: <0.02%
  • Dynamic Range: 100 dB (non A-weighted)
  • Crosstalk: <-91dB, rel 17 dBu
  • Sampling Rate: 48 kHz
  • A/D - D/A Converters: 24-bit
• Mic/Line In Inputs1-8:
  • Impedance: 10kOhm balanced
  • Maximum Level: -65 dBu to +17dBu
  • Echo Cancellation: 128 ms tail time (works with 12dB of room gain)
  • Phantom Power: 24V DC @ 10mA
• Line In Inputs 1-2:
  • Impedance: 10kOhm balanced
  • Maximum Level: 17 dBu
• Line Out Outputs 1-8:
  • Impedance: 50Ohm
  • Nominal Level: 0 dBu
  • Maximum Level: 17 dBu
• Telephone Interface:
  • Telephone Audio Performance Conditions:
    • Unless otherwise specified, all measurements are performed with Transmit Limiter and Receive ALC disabled
  • Frequency Response: 250Hz to 3.3kHz ± 1 dB
  • THD+N: <0.30% re-max level 250 Hz to 3.3 kHz
  • SNR: >62 dB re-max level
  • Telco Line Echo Cancellation:
    • Tail time: 32 ms
    • Null: 55 dB nominal
    • Telephone noise cancellation: 6-15 dB attenuation
• RS-232 Control Port:
  • Connector: DB9 female
  • Baud rates: 9,600/19,200/38,400/57,600 (default)/15,200
  • Protocol: 8-bit / 1 stop / no parity
  • Hardware Flow Control: ON (default)/OFF
• Operating and StorageConditions:
  • Temperature: Operation: 0 to +40 °C
  • Relative Air Humidity: 20 to 90%

SL TeamConnect CB1 Specifications:

• Housing:
  • Dimensions: (W x H x D): 4.7" x 5.6" x 1.7" (11.9 cm x 14.3 cm x 4.4 cm)
  • Weight: 1.51 lbs. (0.75 kg)
• Audio Performance:
  • Frequency Response: 40 to 3,300 Hz THD
  • Noise: <0.04% re-max level with 0 dB gain @ 1kHz
  • Dynamic Range: > 84 dB (non A-weighted)
• Operating and Storage Conditions:
  • Temperature:
    • Operation: 0 to +40 °C
    • Storage: -30 to +85 °C
    • Relative Air Humidity: 20 to 90%
• External Power Supply:
  • DC Output Voltage: +12 V
  • AC Input Voltage: 100
• Terminal Connectors:
  • 3-Pin Terminal Connector: Phoenix Contact MC 1.5/ 3-ST-3.5 (or similar)
  • 6-Pin Terminal Connector: Phoenix Contact MC 1.5/ 6-ST-3.5 (or similar)
  • Contact Spacing: 3.5 mm
  • MEB 104-L Microphone Specifications:
  • Connector: MEB 104-L: XLR-5, Pin assignment: 1 = gnd, 2 = +(Mic+), 3 = -(Mic-), 4 = LEDgreen(triggersignal), 5 =
  • LED red (default)
  • Current consumption: MEB 104-L: 6 mA

Sennheiser MEB 114-S Specifications:

• Dimensions: 3.34 x 3.93 x 0.98 in (W x D xH)
• Connector: Clip contact, trigger signal at the logicconnector: Logic in (LED control), Ground, Logic out (switchsignal)
• Frequency response: 40 Hz – 20 kHz
• Max. sound pressure level: 140 dB
• Transducer principle: Pre-polarized condensermicrophone
• Weight: 10.26 oz
• Pick-up pattern: Cardioid
• Nominal impedance: 200 Ohm
• Phantom powering: P 24 - P 48
• Operating temperature: 14 ° to 122 ° F
• Equivalent noise level: 29 dB (A)
• Equivalent noise level weighted as per CCIR 468-3: 39dB (CCIR)
• Current consumption: 5.3 mA
• Output voltage:
  • Logic out:
    • High level output voltage: > 2.4 V
    • Low level output voltage: < 0.4 V
  • Logic in:
    • High level input voltage: > 2.0 V
    • Low level input voltage: < 0.8 V
• Acoustics: Boundary layer microphone
• Color: LED light ring: Red / Green
• Dynamic range: 111 dB (A)
• Sensitivity: 10 mV/Pa

Sennheiser SL Mic Hub 1 Specifications:

• Housing: Metal
• Dimensions: 14.4 x 7.63 x 3.15 cm
• Ports:
  • 4x Mic: 5-pol Terminal connector
  • 2x Connect/Status: 6-pol Terminal connector
  • 1x Mute: 7-pol Terminal connector
  • 1x Audio: RJ45
• Power Supply: The SL Mic Hub 1 ist connected to the TeamConnect ComboxCB1via a 6-pin terminal connector cable. The Combox delivers the necessarypowersupply to operate the bi-color status LEDs of the mute button MAS 1 TCand thehook button MAS 2 TC. The Combox supplies sufficient power for up to 5MAS 1/2buttons. If you want to use more than 5 buttons in your setup, you needtoconnect an external power supply (5 V, >100 mA, recommended SennheiserPower supply Art.-No. 534480) to pin 6 and 7 of the MUTE socket.

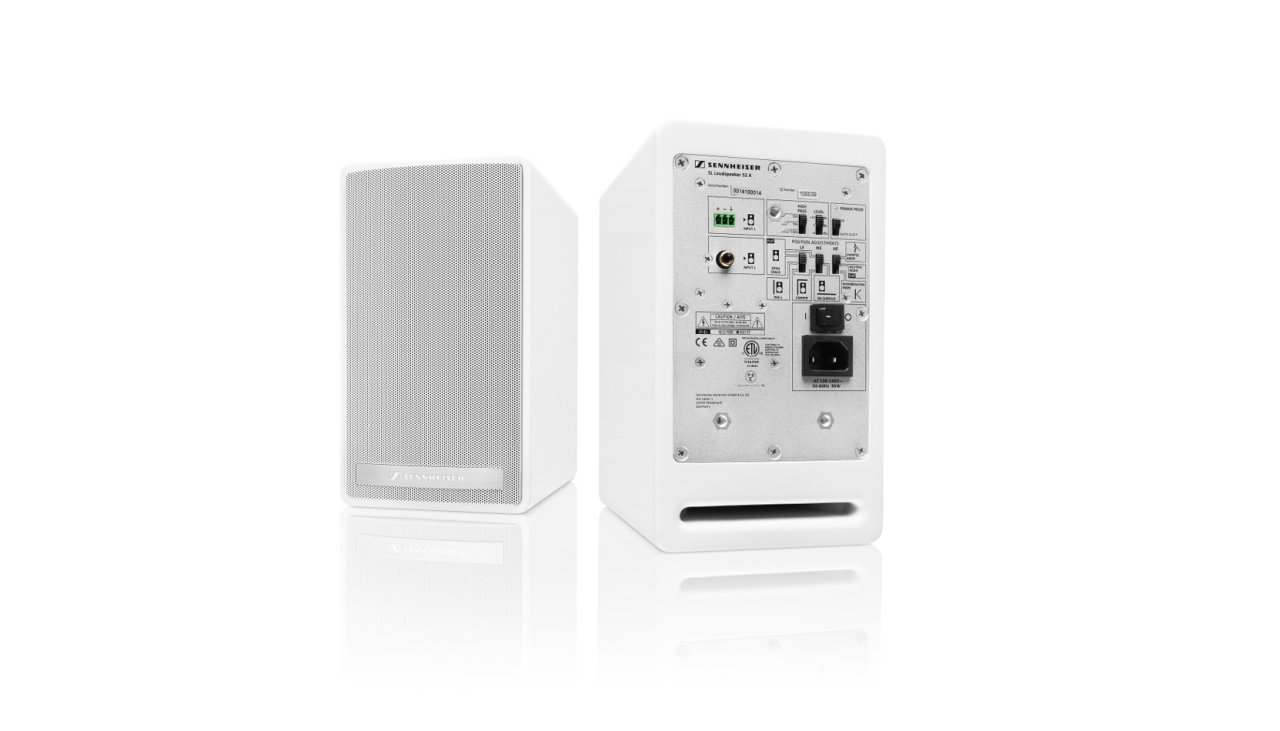

Sennheiser SL Loudspeaker 52 AW Specifications:

• Acoustics:
  • Frequency Response ± 3 dBL: 53Hz - 30kHz
  • Max. SPL at 1 m (150Hz - 5kHz): 97 dB SPL
  • THD @ 90 dB SPL at 1 m > 200 Hz: < 1 %
• Electronics:
  • Nominal output power woofer: 40 W
  • RMS at 1 % THD (with deactivated limiter)
  • Nominal output power tweeter: 40 W
  • RMS at 1 % THD (with deactivated limiter)
  • THD + N vs. frequency at 1 W output: 0.16 %
  • SNR at 1 kHz: 95 dB
  • CMRR: 71 dB
  • Crossover frequency: 4.5 kHz
  • Slope low pass woofer: 12 dB/oct. (2nd order)
  • Slope high pass tweeter: 24 dB/oct. (4th order)
  • Resonance frequency high pass woofer: 55 Hz; 75 Hz; 100 Hz
  • Slope high pass woofer: 24 dB/oct. (4th order)
  • Input sensitivity at 97 dB SPL:
    • Switch positions:
      • -6 dBu
      • 0 dBu
      • 10 dBu
  • Switch-on level switch–on automatics: 1.4 mVRMS
  • Auto standby: 20 min
  • Input impedance:-->
    • Balanced: > 10 kOhm
    • Unbalanced: > 10 kOhm
  • Product Properties
    • Power consumption (standby):
      • 230 V AC; 0.47 W /
      • 110 V AC; 0.34 W
    • Power consumption (idle):
      • 230 V AC; 4.75 W /
      • 110 V AC; 4.53 W
    • Power consumption (max):
      • 230 V AC; 95 W /
      • 110 V AC; 91 W
    • Dimensions (H x W x D): 240mm x 140mm x 161mm
    • Weight: 3.1 kg
    • Mounting points: 2 x M6 on rear panel with depth10mm

Sennheiser MAS 1 TC & MAS 2 TC Specifications:

• Supply voltage: 5 V (12 mA max.)
• Connector: XLR-5M
• Pin assignment XLR-5M out:
  • 1 = Switch
  • 2 = Switch
  • 3 = LED red -
  • 4 = LED green -
  • 5 = LEDs +5 V in
• LED light ring color: red / green
• TTL levels for LED activation: 12 V
• Current consumption LED ring: 12 mA
• Weight: 60 g
• Height: 81 mm (8 mm above surface)
• Diameter: 28.5 mm
• Thread: M 20
• Operating temperature: -10 ° … +50 °C
